3 Way ACS Bosch Automotive (Compact Series) Oscilloscope Diagnostics Breakout Lead
Connector Part No: 1928403870/1928403968

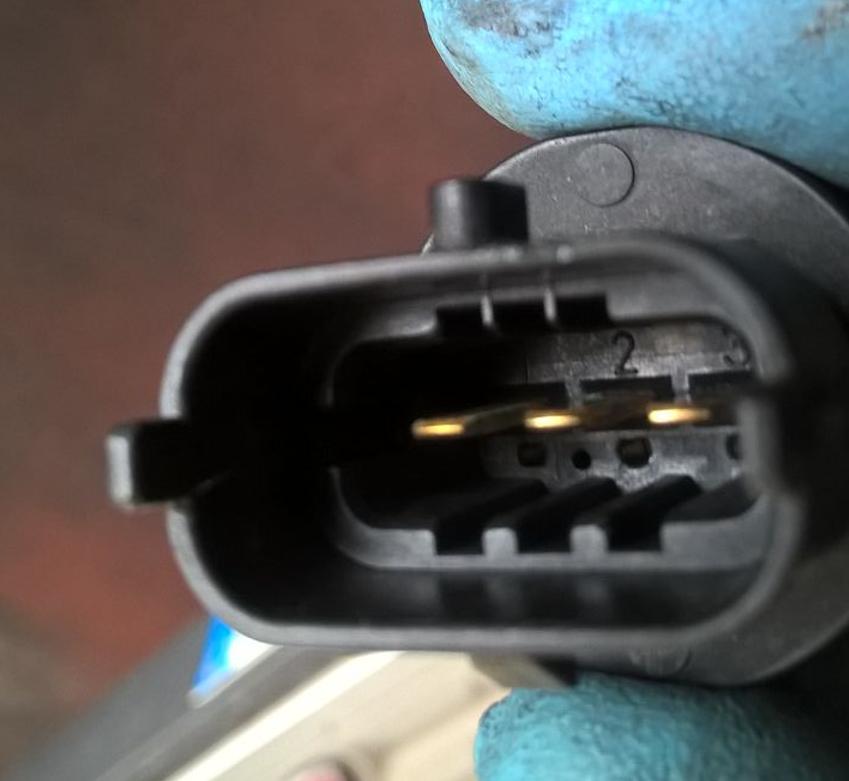

This 3 Way breakout lead is part of our range of automotive connector breakout leads and is designed to connect to 3 pin Bosch ACS connectors found on rail pressure sensors and Bosch common rail fuel diesel injectors starting with Part No: 0445 110 in numerous vehicles.
The leads allow automotive technicians to connect to a connector within a vehicle loom and conduct diagnostic voltage and current measurements of various sensors, actuators and components. This automotive breakout lead is commonly used on rail pressure sensors and crank sensor diagnostics. The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to a handheld or PC based automotive oscilloscope from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.
The individual wire connections are colour coded for identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.
All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:
