Winslow Adaptics W9303 Through-Board PLCC Plug - 44 Pin
(Image representative of range)
The W9303 is a Through-Board Plug that features 44 PLCC pins. These connectors are typically mounted by hand and wave soldering processes. However these connectors can also be mounted by reflow.
Pin Length Variations
W9303 - 11.7mm
W9303-ZC168 - 6.8mm
W9303-ZC185 - 8.3mm (request quote)
W9303-ZC187 - 9.6mm (request quote)
W9303-ZC189 - 15.5mm (request quote)

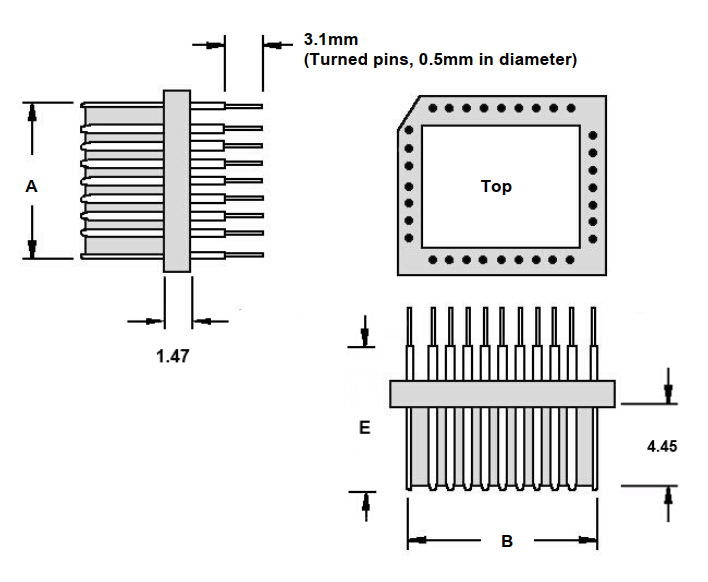

Specification
Gender: Male
Number of contacts: 44
Body Orientation: Straight
Pitch: 1.27
'A' Length: 16.4mm
'B' Length: 16.4mm
