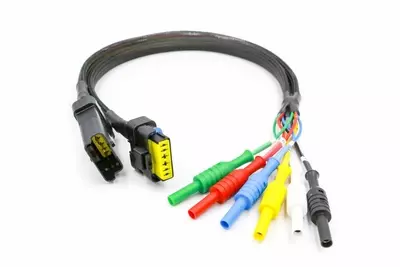

WACB-P116 Delphi Sicma FCI 6way - PSA Vehicle Diagnostic Breakout Lead
Connector Part Number: 211PC069S0049/211PL069S0049
The 6 Way Delphi Sicma Series FCI breakout lead has been designed to connect quickly and reliably to 6 pin Delphi Sicma FCI automotive connectors found on vehicles manufactured by Peugeot and Citroen (PSA Group). The 6 pin Delphi Sicma FCI connector is commonly located on Peugeot and Citroen MAF Sensors and is a hybrid connector utilising 2 sizes of pin/socket terminals.
This breakout lead is also suitable for Ford vehicles that used PSA engines from 2006 - 2014.
The WACB-P116 breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.
Reliable readings start with the point of connection. Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop. Prevent damage to vehicle connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with ease.
All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:
- Pin 1 - GREEN wire and female banana plug
- Pin 2 - RED wire and female banana plug
- Pin 3 - BLUE wire and banana plug
- Pin 4 - YELLOW wire and banana plug
- Pin 5 - WHITE wire and banana plug
- Pin 6 - BLACK wire and banana plug
