Winslow Adaptics W9301 Through-Board PLCC Plug - 28 Pin
(Image representative of range) - MoQ 10pcs
The W9301 is a Through-Board Plug that features 28 pins. These connectors are typically mounted by hand and wave soldering processes. However these connectors can also be mounted by reflow.
Pin Length Variations
W9303 - 11.7mm
W9303-ZC168 - 6.8mm
W9303-ZC185 - 8.3mm
W9303-ZC187 - 9.6mm
W9303-ZC189 - 15.5mm

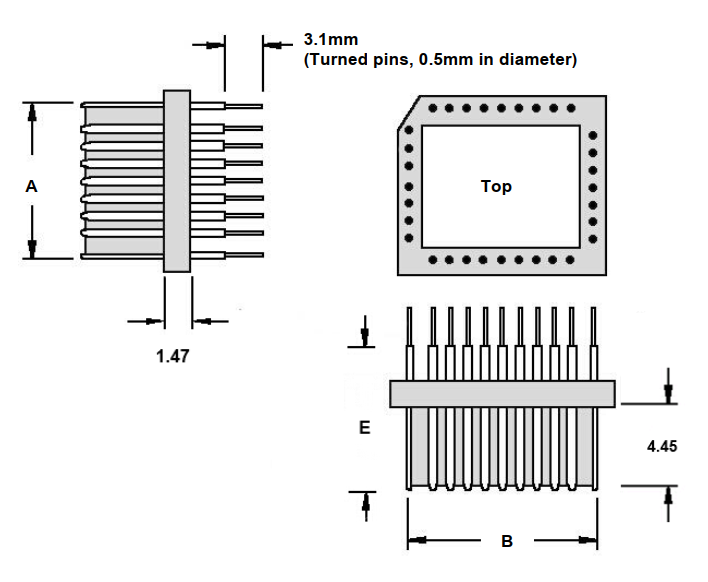

Specification
Gender: Male
Number of contacts: 28
Body Orientation: Straight
Pitch: 1.27
'A' Length: 11.15mm
'B' Length: 11.15mm
