This Insulated Double Turret Terminal has a PTFE insulator and is the reverse feed through version. It is also can also be referred to as ITT Cannon Part No: RST-SM-25TUR-C4 and National Stock Number (NSN) 5940-00-681-0365.

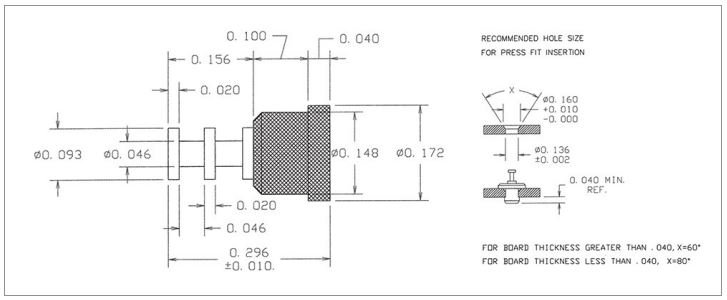

The PTFE insulator has a 4.37 mm (.172") diameter top turret, 3.76mm (.0148") main turret and a height of 3.56 mm (.140"). The overall length of the terminal is 7.52mm (0.296").
Material: BRASS PER ASTM B16, ALLOY C36000, 1/2 HARD
Finish: 0.000300"MIN. ELECTROSOLDER PER SAEAMSP81728 OVER 0.000100"MIN. NICKEL PER SAEAMSQQN290
Supplied in multiples of 100.
RoHS Compliant: NO
View the datasheet below for further specification details.
