Delphi Injector Automotive Breakout Lead for Vehicle Diagnostics

Delphi injector breakout cables allow automotive technicians to quickly find the cause of electrical faults with common rail Delphi injectors. Fault finding on vehicles that are heavily dependent on electronics for management of on-board systems, such as fuel, air conditioning and braking require quick effective diagnosis.

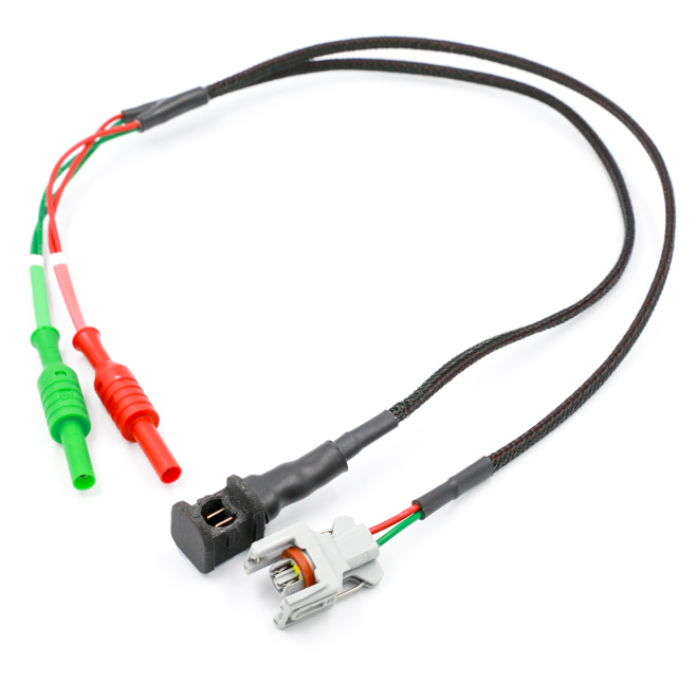

Go beyond automotive fault codes and diagnose an injectors electronic circuits to identify the root cause of the problem with this 2way Break Out Lead.  This breakout lead has a specially designed connector that fits to the female connector found on the injector.



Delphi Automotive Connector Breakout Lead Diagnostic examples:

  • Line continuity and insulation testing;
  • Measurement of Voltage with an oscilloscope or Multimeter;
  • Measurement of Current with a Current Clamp;
  • Prevents damage to Automotive connectors caused by using inappropriate connectors or probing pins.

The Delphi 2way Automotive Connector Breakout leads require a BNC to 4mm Banana Plug Patch Lead to connect to either a handheld or PC based automotive oscilloscope. Popular Automotive instruments include; PicoScope, Hantek, Sealey and Bosch.

Specialists in Automotive Diagnostic Breakout Leads

Warwick Test Supplies offers a range of automotive diagnostic breakout leads for the most common automotive connectors from various brands in the automotive industry such as Bosch, Delphi, Deutsch, AMP and Kostal.

Broken a connector or have damaged terminals?  No problem, as we supply automotive connector kits with all the housings, terminals and plugs etc included to save you time and hassle in tracking down the right part or component.
